Multi Channel Ultrasonic Flaw Detector
UMD-M series are based on PC platform and by working with probe detection and mechanical devices, the new series can achieve automatic ultrasound testing with high accuracy, reliability and high efficiency.

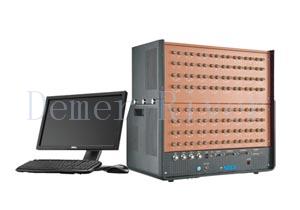

Multi Channel Ultrasonic Flaw Detector

Specification


-

It can support  from 32 to 128 ultrasound channels (four types of housing for 32/64/96/128  channels)

-

Each PCB has 8  independent T/R channels

-

For the same  PCB, the channels work in turn. Different PCBs can work at the same time or  work in turn

-

Each ultrasound  channel has conventional UT, with max. PRF up to 2.5KHz/channel

-

High  performance T/R front-end. Square wave transmission can be up to 500V

-

Working  frequency range: 0.5-20MHz

-

A-scan  real-time sound and light alarm function, passive measurement or marker  interface, input and output control functions

-

B scan full  time recording, measurement and calculation, and movie replay functions based  on time or encoder

-

2D rotary  encoder connector

-

Automatic  inspection of beginning/ending sensor input control

-

Data management  and statistics functions

-

Remote control  function by PC through LAN connector

-

WiFi  transmission



Operation interface




Application
