Portable Spectroscope
SP-10 Series Portable Spectroscope is mainly used to distinguish elements contained in metal alloys; it can also distinguish alloy steel and stainless steel grades. It is widely used in aerospace, power plants, boiler and furnace industry, heat treatment factory, valve and pipes, metallurgy, stainless steel, machinery industries as well as waste treatment places.
Portable Spectroscope

Features

Compact structure, light weight,easy to carry, fast analyzing, economical and reliable;

Complete adjustment mechanismincluding wavelength focusing, automatic compensation, spot monitoring andLight source direction adjustment.


Series model

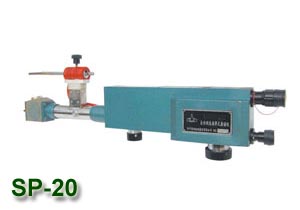

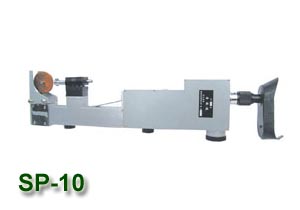

Classic model  Upgrade model

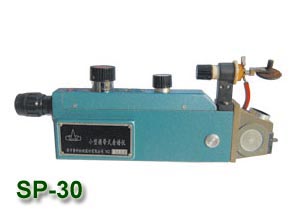

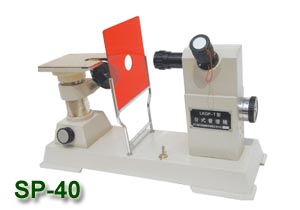

Mini modelTable model


Specification

Description

SP-10

SP-20

SP-30

SP-40

Wavelength  range

390-700mm; resolution: 0.05-0.11nm

Visual  Resolution

Fe:  613.66 and 613.77nm;

Fe:  487.13 and 487.21nm;

Mn: 476.59 and 476.64nm

Dispersion component

optical prism

1200  line/mm

2400  line/mm

Objective  lens
 focal distance

F=260mm
D/f=1:8.7

F=300mm
D/f=1:6

F=150mm
D/f=1:5

Grating area

45×45mm

Objective  lens  Amplify

X15

Dimension(mm)

625x180x190

600×165×190

340x150x190

450×150×260

Weight

4.3kg

3.5Kg

         2Kg

5Kg

Analytical  elements


Steel

Cr. W. Mn. V. Mo. Ni. Co. Ti. Al. Nb. Zr. Si. Cu.

Copper  alloy

Zn. Ag. Ni. Mn. Fe. Pb. Sn. Al. Be.  Si

Aluminum alloy

Mg. Cu. Mn. Fe. Si. Sn
