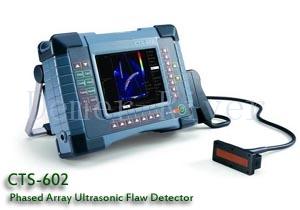

Phased Array Ultrasonic Flaw Detector
Excellent performance and Lowest price;Clear Image;Linear Imaging;Sector Imaging;Accurate Flaw Position and Size;Ultrasonic Imaging and A-scan Display;
Phased Array Ultrasonic Flaw Detector

Features

-

Easy operation  and user-friendly interface

-

Conventional and  phased array modes are available in the same system，which is convenient for inspectors' testing and  evaluation

-

Up to 32  channels，compatible with 16/32/64/128-element probes.

6.5”TFT Screen，640×480

-

Bi-polar square  wave transmission and adjustable Transmission pulse width

-

Transmit  single-point focusing and receive dynamic focusing

-

Featured with  linear scanning，fixed-angle linear scanning and sector  scanning

-

A VGA monitor or  projector can be connected via the VGA port，good for  promotion， demonstration and multi-media  teaching for flaw detection training course

-

Files saved in  the system can be exported to a computer for creating reports via the USB  port



Performance Display

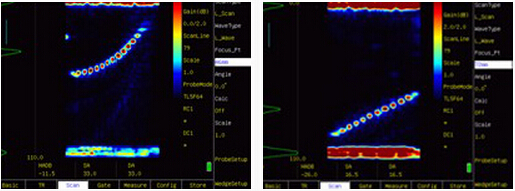

0  Linear Scan(Longitudinal wave)

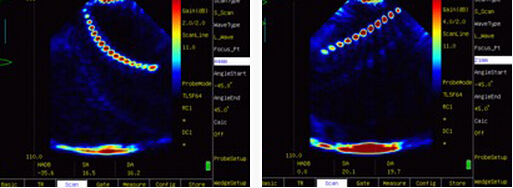

-45  - 45  Sector Scan (Longitudinal wave)


Body Parameter

Display

6.5” 640×480 color TFT

Memory

Capable：32MB memory + U disk


External: USB

Extended  Port

VGA x  1


USB x  1


LAN x  1

levels of protection

IP20

Power

Lithium  Battery 10Ah, AC Charger 12V/output

Battery work-time

>4h

Operation  Temperature

0 ℃～ 40 ℃

Storage  Temperature

-20℃～60℃

Weight

3.5Kg(with battery)

Dimension

262mm(L)×196mm(W)×92mm(H)


Specification

Item

Phasor  model

A  scan model

Bandwidth

1～10MHz

0.5～15MHz

A/D

120MHz

240MHz

Probe  Connector

X 1,  support16/32/64/128 array probe

X 2, BNC

Pulse

Square  wave

Pulse  wave

Voltage:  +/- 60

Voltage:370V

Width:40ns-500ns,  step 20ns

PRF:20Hz-500Hz

PRF:  100Hz-4KHz


Delay:0us-20us,  resolution 5ns


Receiver

Gain:0-80dB

Gain:0-110dB

Frequency Range:1-10MHz

Frequency Range:0.5-15MHz

Delay:0us-20us,  resolution 3ns

Full  wave/pos hw/neg hw/RF

Focus

Max  scan range 1008 point per line

160MHz  real-time focus

----

Filter

automatic  adjustment

automatic  adjustment

Scan  type

Liner  / Sector scan

----

Scan  angle

Liner:  -45 - 45

----

Sector:-80  - 80

----

Scan  range

0-1000mm(steel/ LW)

0-6000mm(steel/ LW)

Material  Velocity

1000-10000m/s

1000-10000m/s

Display  Delay

0-1000m/s

0-1000m/s

Zero  Delay

----

0-200us

Reject

----

0～80%

Curve

----

DAC/AVG

Other  function

----

A  scan freeze, Auto-Cal, Peak hold, AWS D1.1/D1.5, etc

Measuring  point

Flank/peak/Jflank

Flank/peak/Jflank

Language

Chinese/English

Chinese/English

Favorite units

mm/inch

mm/inch

Result

Double  gates: Sound path, echo height, path G1-G2, Depth, Projection distance

Double  cursors: Vertical/horizon

Double  gates: Sound path, echo height, path G1-G2, Depth, Projection distance



Memory

100  data group, ext U disk

200  data group, ext U disk


Application

  Work pieces like blade root or those with confined space
  Regular Detection on Welding Seam
  Detection on Screw Bolts
  Rail WS Detection
  Railway Vehicle Wheel Axle and Wheel Set Detection
  Al-Alloy Friction Stir Welding Seam Detection
 Ethylene Tube Butt

   PA C-scan on Composite Materials
