Overview

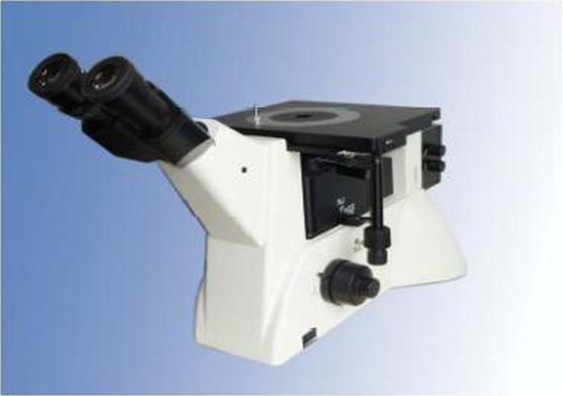

MD5000 Invertedmetallurgical microscope is Multi‐function materialmicroscope.
Light field observation | |
Dark field observation |
Specially developed three stages for metallographic examination, it is suitable for various kinds of complicated components. Especially the heavier items can be directly put in the stage and stable operating them. | ||
Configuring the high quality of light and dark field of the objective, improving the image resolution, and through the dark field plus polarized light observations, it can be better discriminated the non‐metallicinclusion. | ||
The rear camera interface design. During the camera shooting, the indoor illumination cannot be disturbed and limited from eyepiece. Adopting 100% light pass, it suitable for low illumination level of microscopic photography. |
More Powerful Features
develops the microscopic digital imaging system,which the imaging rate through computer is the same as eyepiece observation. Meanwhile,the image capture is more than 60% of field range. It has great advantages comparing with other imaging system, successfully ensure the accuracy of metallurgic alanalysis. PM-5000 adopt 3 million pixel camera dedicated for microscopic. Screen observation and eyepiece observation can be conducted at the same time and ensuring the parfocalization.
Digital camera - Camera:1/2” progressive scanning color CMOS Distinguish ability: 3 million pixel, resolution 2048*1536 - Adaptor: C‐Mount 0.5 X - Software:high definition display, color/black and white transition, equal magnification display | |
DCK Camera Digital camera: general civil use digital cameral or DSLR Camera Distinguish ability: 10 million pixel, close‐up microspur 3mm Adapt: DCK 10X Collecting field: 90% eyepiece observation field
| |
Metallurgic Alanalysis Software Which can auto matically evaluate the levels and generating the report Typical modules in accordance with GB / ASTM / JIS etc. standards |
Specification
Optical system | Infinity chromatism correction UF optical system |
Observation Methods | Light field, dark field and polarized light |
Focusing mechanism | coaxial rough and fine adjustment, route: rough adjustment 38mm, fine adjustment 0.2mm |
Stage | three mechnical stages, the range of movement: 30*30mm |
Polarized light system | polarizer, 360 rotating polarization analyzer |
Illuminating system | reflected light luminaire 12V, 50W, with variable aperture diaphragm and central adjustable field diaphragm. |
Eyepiece | 10*WFOV 22mm |
Objective lens | 5X/0.12BD, 10X/0.25BD, 20X/0.40BD, 50X/0.70BD, 100X/0.85BD |
Video output | 0.5X C interface, 100% light pass |
Overall dimension | 814X256X400mm |
Weight | 15Kg |
