Ultrasonic Thickness Tester(Coating Thru)

Your present position： Home >> Products >> NDT Potable Gage >> Ultrasonic Thickness Tester

Be Capable of reading wall thickness thru coatings and paint without affecting the measurement; Measuring range: Thru coating mode: 3-25mm Standard mode:0.65-400mm

Features

- Be Capable of reading wall thickness thru coatings and paint without affecting the measurement
- Auto probe zero calibration, Auto Probe identify
- Measuring range: Thru coating mode: 3-25mm Standard mode:0.65-400mm
- Display resolution: 0.01mm or 0.001 inch
- 5 MHz,7.5MHz, 10MHz, 2.5MHz transducers are available
- Accuracy:±0.04mm (when thickness＜9.99mm)
±(0.1% thickness + 0.04)mm (when thickness=10-99.9mm)
±0.3% thickness mm (when thickness＞100mm)
- USB output, memory 5000 readings with location number

Specification

Desctription			DC3000	DC3020
Measurement mode	T-E	-Standard measurement: For Normal thickness measurement. -Minimum measurement: For curved surface -Differential measurement: Displays the difference from the actual thicknessmeasurement or from a user entered reference value -Average measurement : 2-9 point selectable -Limit measurement: Min. Max setting and alarm	√	√
	E-E	The metal wall thickness is accurately and quickly measured in spite of surface coating	√	√
	Scan	thickness value at 10 measurements per second while also display actual thickness (Ideal for high temp. thickness readings)	√	√
Probe identify	Auto		√	√
Probe zero	Auto		√	√
Gain adjust	Auto Manual :low, standard and high		√	√
Memory	5000 groups		–	√
Output	USB to PC		–	√
Measuring Range	E-E : 3-25mm T-E: 0.65-400mm(range depends on probe-material combination)		√	√
Resolution	0.01mm / 0.001 inch		√	√
Information Display	Measurement reading, Probe type, Velocity, measurement mode, measurement Symbol, Battery		√	√
Velocity range	9 material velocities are stored for selection, or entre the new velocity manually (1000m/s-9999m/s)		√	√
Vel. measurement	Simply calibrate when a material’s velocity is unknown		√	√
Display	128 x 64 graphics LCD monochrome		√	√
Battery Type	2 AAA Alkaline		√	√
Battery life	Up to 50 Hours (without Backlight)		√	√
Shut off	Auto, 2Min., 5Min., or never shut off delectable		√	√
Work.Temperature	-20℃-50℃		√	√
Dimensions	115mm x 64mm x 27mm		√	√
Weight	220g		√	√

Standard delivery

– Main Unit

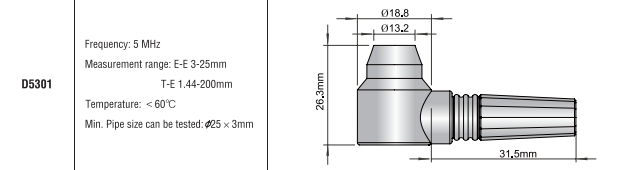

– Standard 5MHZ transducer D5301
– Built-in calibration Block 4mm
– Couplant 75Ml
– Calibration Certificate
– Software + Cable(DC3020)
– User Manual
– Carrying Case
