Ultrasonic Thickness Tester

Your present position： Home >> Products >> NDT Potable Gage >> Ultrasonic Thickness Tester

Measuring range: 0.65-400mm; Display resolution 0.1mm/0.01mm

Features

- Pocket size, easy to operate
- Auto probe zero calibration
- Auto probe identify
- Measuring range: 0.65-400mm
- Suitable for various materials such as steel, stainless steel, aluminum, glass, polystyrene, polyethylene
- Auto/Manual gain adjustable
- USB output (DC2020C)

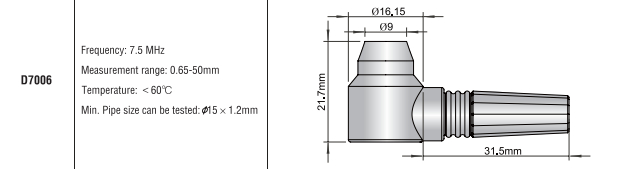

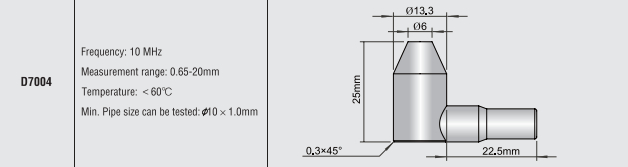

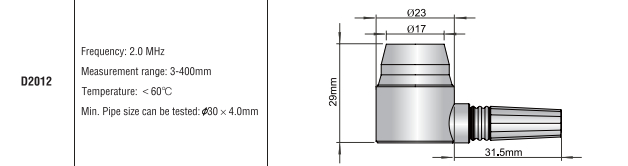

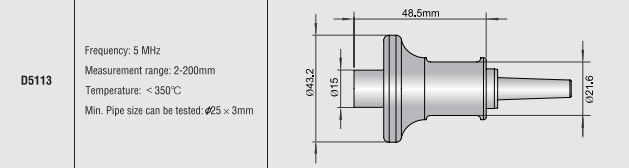

- Standard 5.0MHz tranducer included, optional transducer: 7.5MHz, 2.0MHz, 5.0MHz high temperature, 10MHz
- 9 material velocities are stored for selection or input new velocity
- Display resolution 0.1mm/0.01mm
- Memory of 5000 readings with location number (DC2020C)

Specification

Function	DC2000C	DC2020C
Display: 128 x 64 with backlight	√	√
Measuring Range:0.65-400mm(depends on probe-material combination	√	√
Velocity Rate: 1000 – 9999m/s, 9 material velocities are stored for selection, or input the new velocity manually	√	√
Resolution: 0.1mm/ 0.01mm selectable	√	√
Measuring units: mm/inch	√	√
Material work piece: Glass, Glass Bottle, Polystyrene, Polyethylene, Steel, Alloy steel, Stainless Steel, Aluminum etc.	√	√
Accuracy: ±0.04mm(when thickness<9.99mm) ±(0.1% thickness+0.04)mm (when thickness =10~99.9mm) ±0.3% thickness mm (when thickness>100mm)	√	√
Average mode: 2~9 times average measurement	- -	√
Limit setting: with Low-High indication and alarm	- -	√
Memory: 5000 readings with location number	- -	√
Memory: 5000 readings with location number	- -	√
Data output: USB to PC	√	√
Temperature of work piece surface: -15℃ to +350℃	√	√
Power supply: 2 Pcs AAA dry cell, work 48 Hours continuously (without backlight)	√	√
Dimensions and weight : 115 x 64 x 27mm, 220g including batteries	√	√

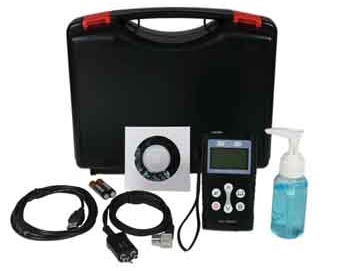

Standard delivery

- Main Unit

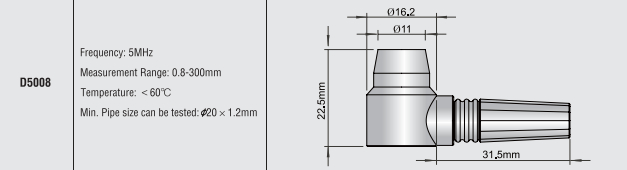

– Standard 5MHZ transducer D5008
– Built-in calibration Block 4mm
– Couplant 75Ml
– Calibration Certificate
– User Manual
– Software + Cable(DC2020C)
– Carrying Case
