Phased Array Ultrasonic Flaw Detector SUPOR
Modular Design; Grouping Scanning; Welding Simulation; Scan setup wizard; Phased Array, TOFD and Conventional Ultrasound for Selection.
Phased Array Ultrasonic Flaw Detector SUPOR


Function

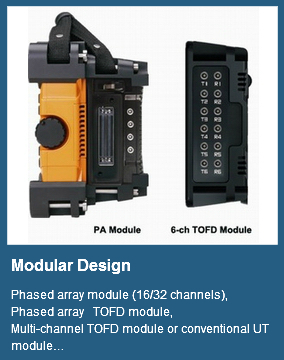

-Modular design
-Phased array module (16/32 channels)
-Phased array + TOFD module
-Multi-channel TOFD module or conventional UT module
-Grouping Scanning

It can be divided to up to six groups for one PAUT probe for differentinspections
-Welding simulation
-Scan setup wizard
-Real time A/B/C/D scan
-Support two PAUT probes working simultaneously with grouping function
-8.4” touch screen LCD withresolution 800 x 600 pixels
-Support 2,4,6 channels

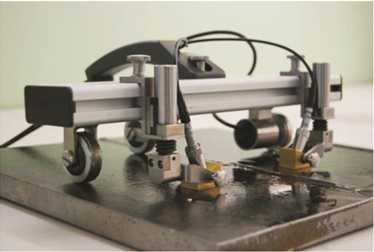

Scanner

-High precision encoder, Accurate positioning
-Aluminum alloy Scanning frame, install and disassemble conveniently
-

Magnetic roller


Layout


Phased Array Mode

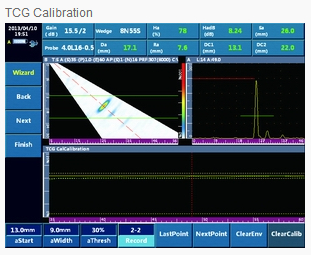

Real Time A/B/C/D ScanTCG Calibration


TOFD Mode


TOFD ModeWizard

Probe CoverageBolwhole Defect

Inclution DefectIncomplete Defect

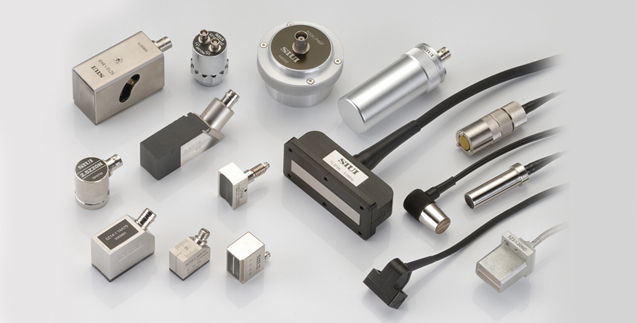

Probe for UT/PA/TOFD
