Insulator Flaw Detector
Insulator Flaw Detector, is through ultrasonic reflection principle, configuration of special ultrasonic probe, to find the defect of insulator in power supply system. At present, a lot of insulator inspection methods, ultrasonic method are popular in many power companies because of the lower cost, simple operation, higher reliability.
Insulator Flaw Detector

Features

• Spike pulsers are still preferred for everyday use.

• For low frequencies, square wave pulsers allow optimum probe matching byadjusting pulse width and voltage.

• Difficult to penetrate metallic applications and especially non- metalsinspection like composite materials are optimized.

• Pulse width is tunable up to 1000 ns in 10 ns steps for optimum probematching and versatility in meeting a wide range of applications.

• Pulse voltage is adjustable from 20 to 500 V in 10 V steps.

Ruggeddurability, great than 8 hours of battery use, fast rotary knob operation,outstanding ultrasonic performance, and now square wave pulser and color legcombine to form a powerful portable ultrasonic inspection tool with new LithiumIon battery.


Operation of the sense


HOW to use？

Draw the DAC OR TCG CURVE that depend on the BX DAC block, easy to evaluate the existence of detects.

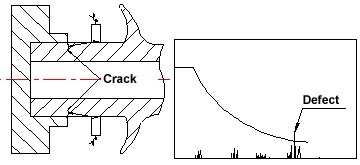

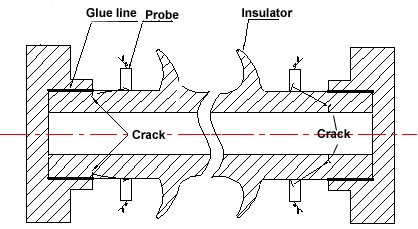

Found the crack in the insulator two ends, which difficult to see.

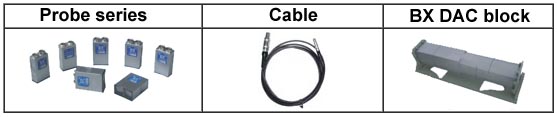

Standard delivery

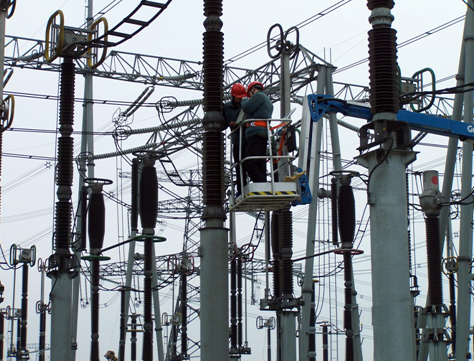

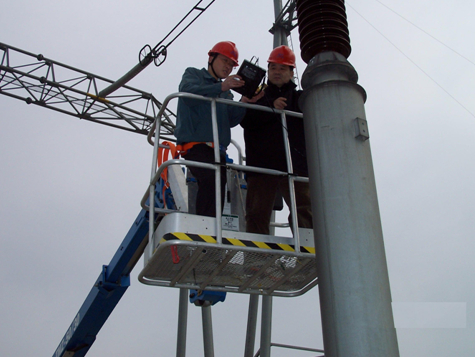

Example of Application

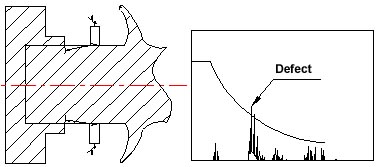

Not any detectionDefects are found in different locations


Defects are foundDefects are found
