Ultrasonic Hardness Tester
UHT-L1 Portable hardness testing is on the advance: in these times of cost pressure and higher quality requirements, it represents not only a quick but most of all an economical supplement to stationary hardness testing in the modern production process. The application possibilities are far ranging - this refers to both large and smaller components, especially at positions which are difficult to access.
Ultrasonic Hardness Tester

UHT-L1 Ultrasonic Hardness Tester

Introduction:

◇ Measuring the Hardness of large workpiece

◇ Wide Range of Hardness

◇ HV、HB、HRC and TensileStrength Mpa

◇ Easy operation, Rapid Performance

◇ LCD Screen and Backlight

◇ Automatic Recognition of Sensor

◇ Any Direction to Performance

◇ Inaccordance with ASTM A1038-2005


Main Technical Parameter

Hardness Range:


HRC:
 HB:
 HV:

Tensile strength,  Mpa:

20 – 70  (±1)

90 – 450 (3%)

230 - 940 (3%)

370 - 1740

Operation Temperature

-5°C - +40°C

 Power Supply

AA battery, 2  pcs

 Working Time

100 Hours

 Size

120mmX60mmX25mm

Weight

0.9 Kg

Probe Parameter

Probe Name

L101/L105/L110

Length and Diameter

160mm and 25mm

Load Force

10N/50N/100N

Probe Deadline(approx.)

200,000 times

Minimum test thickness(steel)

1mm

Minimum test diameter

5mm

Maximum surface roughness

Ra 2.5 μm

Date Storage

1000 results

Operate Time

4 second


Standard delivery for UHT-L1

UHT-L1 main body

1

L105 Probe

1

Cable

1

Manual book

1

Standard Block

1

Case

1


Optional for UHT-L1

L101 Probe (10N)

L110 Probe (100N)

Standard Block HV200

Standard Block HV400

Standard Block HV800

Standard Block HRC20

Standard Block HRC40

Standard Block HRC60

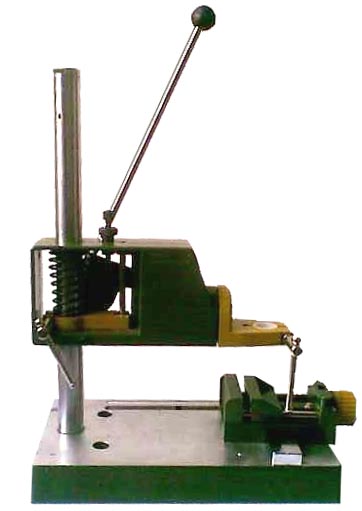

Operation Platform UHT-Sp1


Operater Platform
